Today, before we dive into the actual development talk, I’d like to take a moment to explore in more detail what we hope to achieve through this project—sprinkling in a fair share of personal thoughts along the way.

Why Hexagon?

I’m a huge fan of JRPGs, especially turn‐based SRPGs—or more broadly, turn‐based strategy games. Consider:

Farland Saga series, Fire Emblem series, Tactics Ogre, The recent Octopath Traveler
And strategic masterpieces like XCOM or Battle Brothers

Some of these use square‐grid maps, while many employ hex‐grids. (Of course, games like Baldur’s Gate 3 use continuous coordinates, but classic turn‐based SRPGs typically stick to grids.)

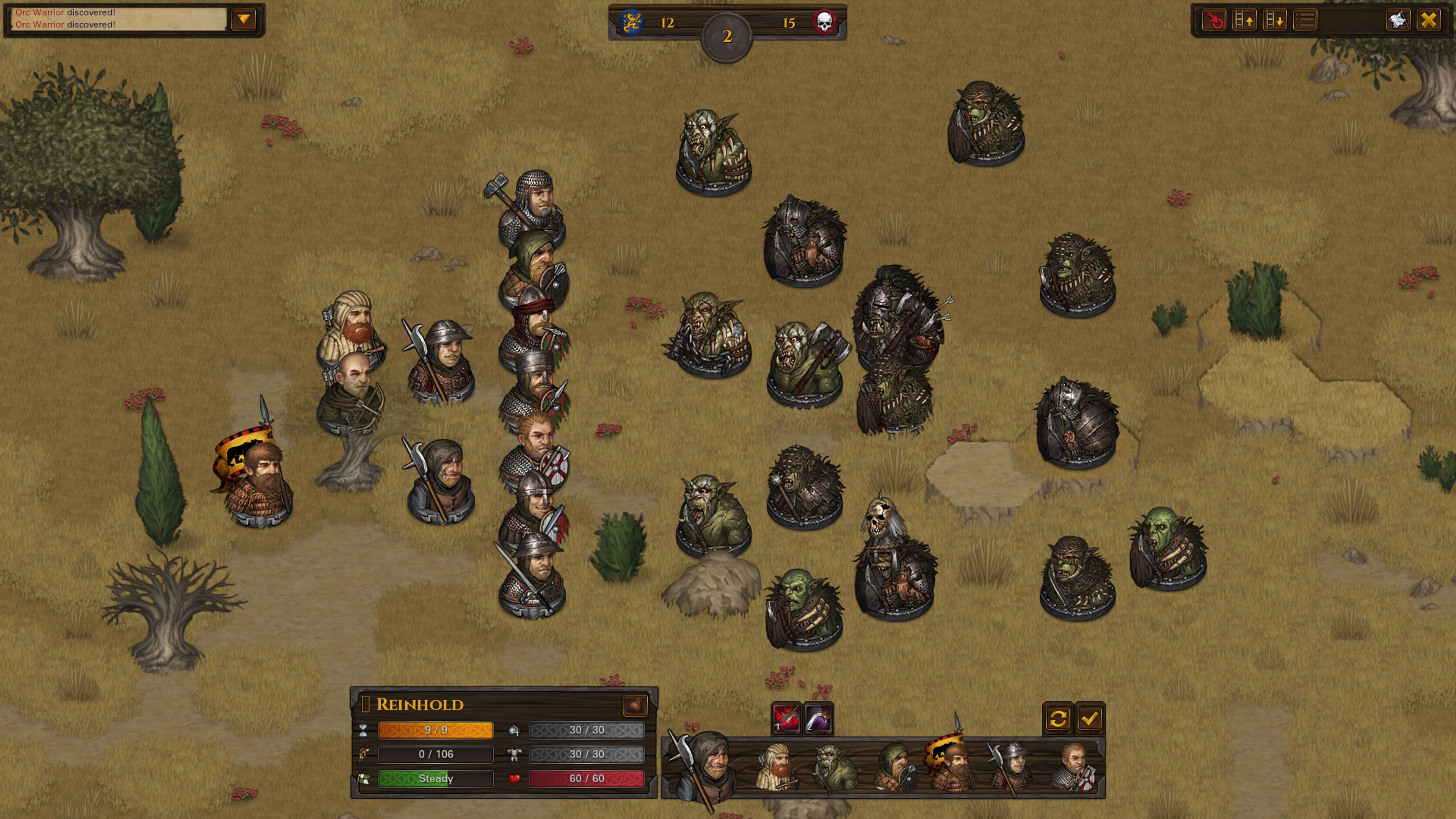

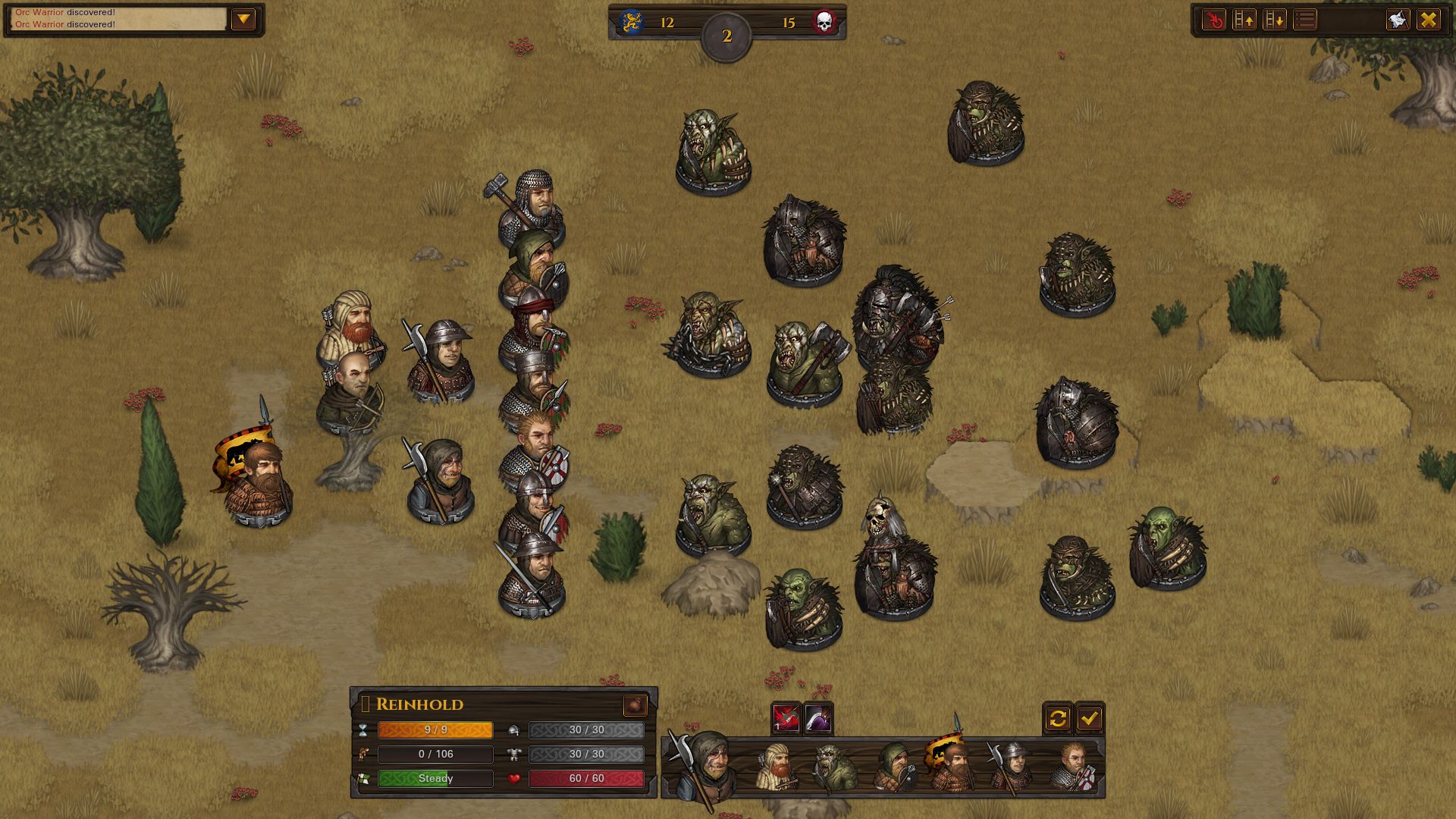

battle-brothers-example

The Crucial Differences: Square vs. Hex

Forming a Front

Squares: When multiple units line up, each unit only contacts one neighbor edge.
Hexes: Units pack tighter—any gap lets enemies surround you, and each cell touches at least two adjacent cells.

Range & Diagonals

Squares: Diagonal distance ≠ straight‐line distance, making “fair” ranged combat tricky.
Hexes: All center-to-center distances are equal—no diagonal quirks.

Zone of Control (ZOC)

Hard to impose ZOC naturally on squares, since each unit only influences four directions.
On a hex grid, a unit controls six neighboring cells, easily constraining enemy movement.

Battle Brothers brilliantly leverages these hex characteristics to evoke that gritty, medieval, sweat-dripping melee combat. I loved it—and it inspired me to build my own take on “Battle Brothers on hexes.”

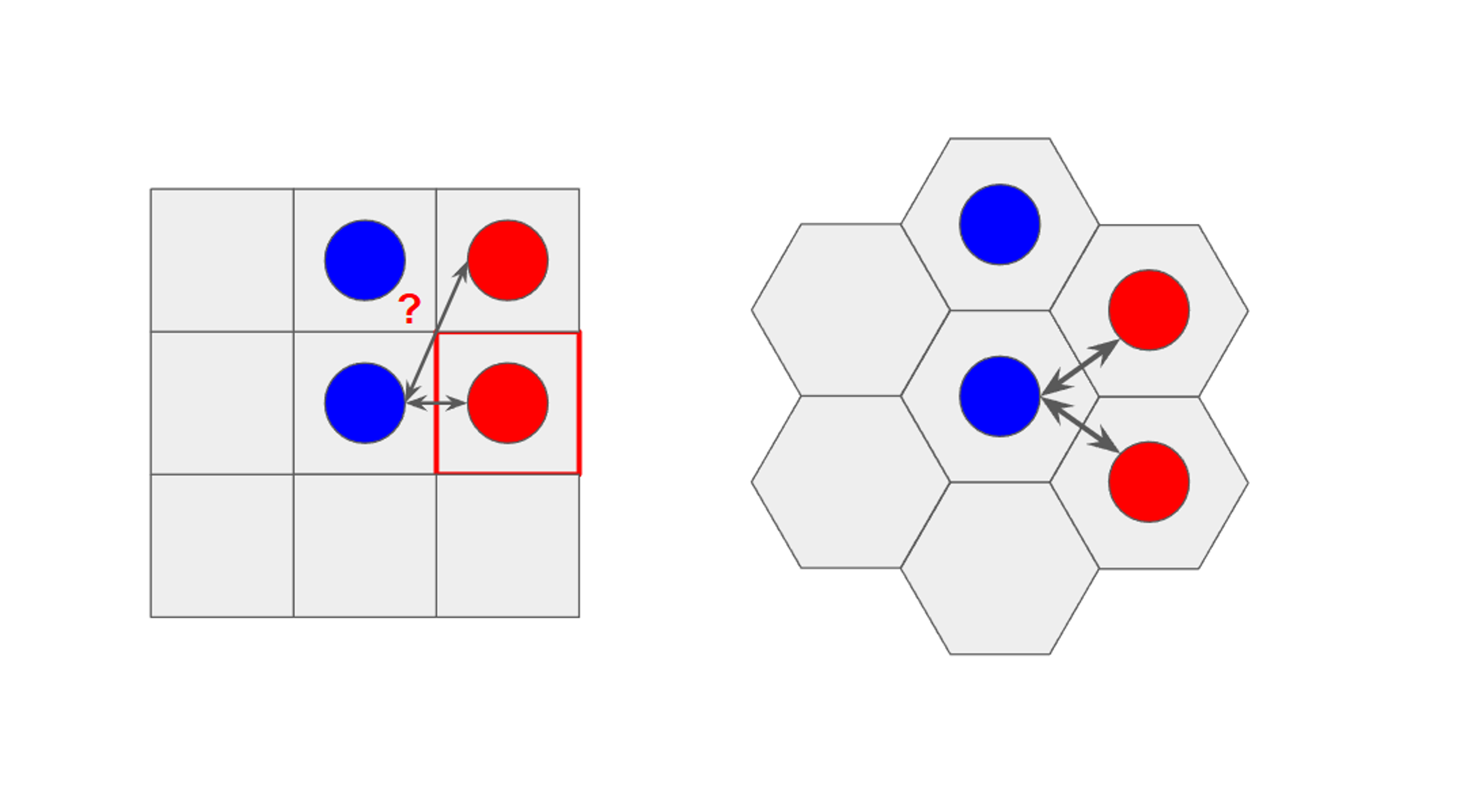

tile_difference_rect_vs_hexa

The Bigger Picture

Beyond just hex-grid combat, this project will rest on three pillars

Roguelike-Economy Systems
Beyond just hex-grid combat, we’ll build the kind of evolving, repeat-play economies you see in Darkest Dungeon, XCOM, Battle Brothers, Wartales, and similar titles—so every run feels fresh and strategically deep.

Smart AI
Rather than the usual “higher difficulty = massive resource bonuses for the AI,” I want a true test of wits: at higher difficulty levels, the AI should actually get smarter, managing its civilization more efficiently (without any unfair perks), so that I can experience being out-played by a genuinely superior strategist.

The Web
Steam is great, but with modern WebAssembly (wasm), pure-web games are finally practical. I’m excited to push the boundaries of what a browser-only strategy RPG can be.

So, now...

“A journey of a thousand miles begins with a single step.”

Let’s start by drawing a hexagon.

A Hexagon

Hex Geometry & Size

We’ll choose an edge length of 10 units for each hex cell.

Outer Radius (distance from center to a corner) = 10
Inner Radius (distance from center to a side)

\text{Inner Radius} = \frac{\sqrt{3}}{2} \times 10 = 5\sqrt{3} \;\approx 8.66025

This matters because the distance between centers of adjacent hexes is 2 x Inner Radius

To keep this handy, let’s define a static metrics class:

#[derive(Resource)]
pub struct HexMetrics {
    pub outer_radius: f32,
    pub inner_radius: f32,
}

impl Default for HexMetrics {
    fn default() -> Self {
        let outer_radius = 10.0;
        Self {
            outer_radius,
            inner_radius: outer_radius * 0.866025404, // sqrt(3)/2
        }
    }
}

File: hex_system.rs

Flat-Top vs. Pointy-Top

We’ll use flat-top hexes (horizontal faces) because:

Vertical lines form naturally, making front-line layouts intuitive.
From left/right perspectives, each hex exposes exactly 2 faces. Pointy-top hexes can expose up to 3 faces—often too many.

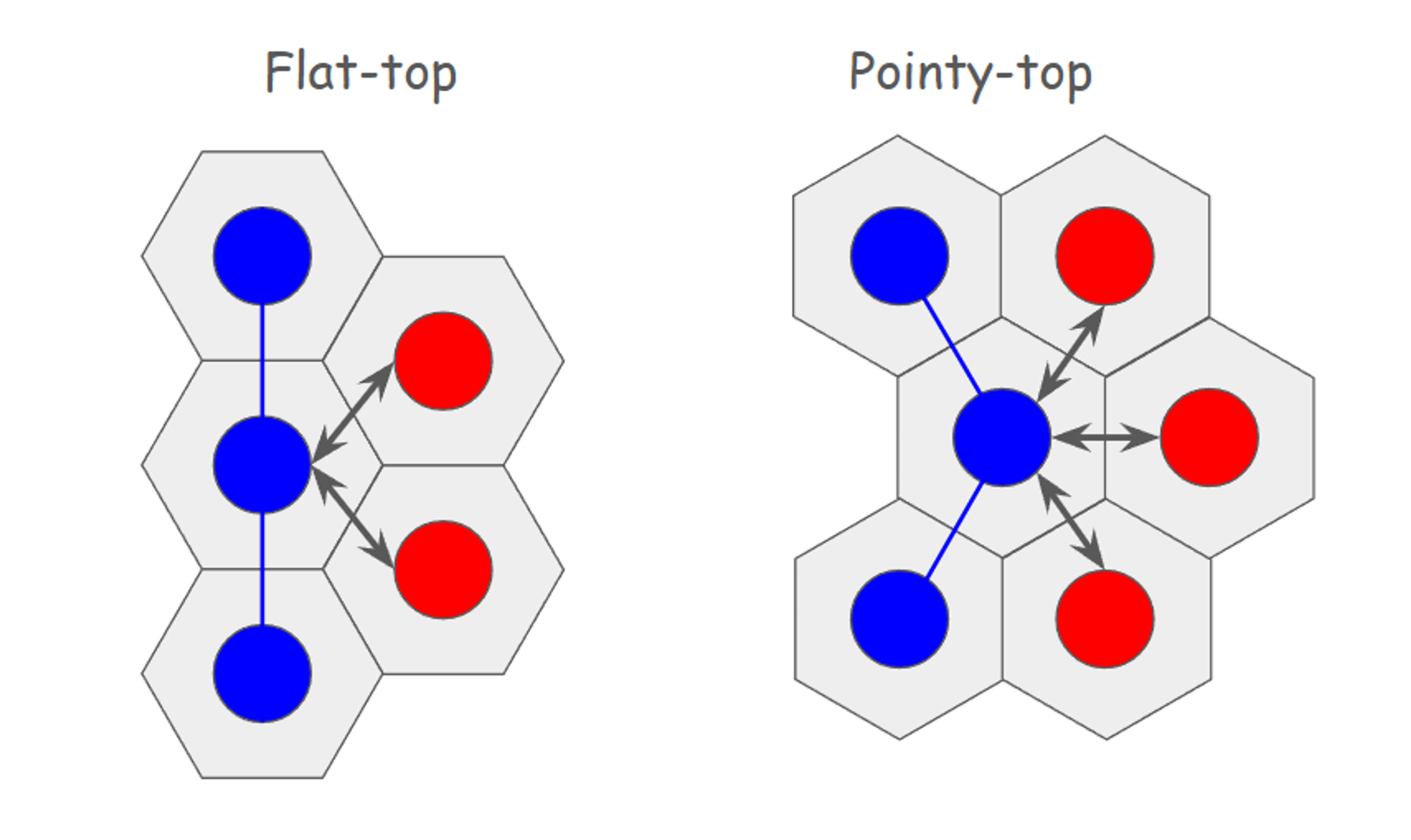

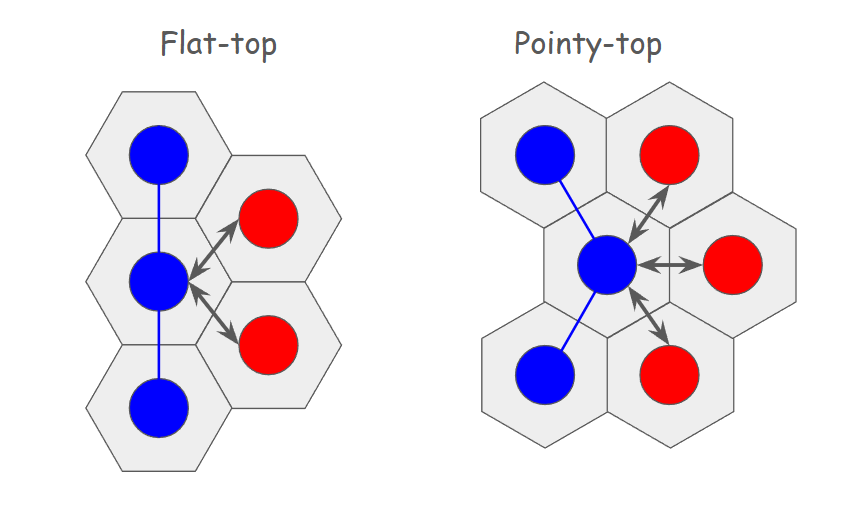

flat-top-and-pointy-top

Computing Hex Vertices

For a flat-top hex centered at (0,0)(0,0)(0,0), the seven vertices(including a center point) are:

\begin{aligned} \mathbf{p}_0 &= (0,\,0,\,0),\\ \mathbf{p}_1 &= (R,\,0,\,0),\\ \mathbf{p}_2 &= \bigl(\tfrac{1}{2}R,\,0,\,r\bigr),\\ \mathbf{p}_3 &= \bigl(-\tfrac{1}{2}R,\,0,\,r\bigr),\\ \mathbf{p}_4 &= (-R,\,0,\,0),\\ \mathbf{p}_5 &= \bigl(-\tfrac{1}{2}R,\,0,\,-r\bigr),\\ \mathbf{p}_6 &= \bigl(\tfrac{1}{2}R,\,0,\,-r\bigr), \end{aligned} \quad \\ \text{where } R = \text{outer\_radius},\quad r = \text{inner\_radius}.

In code:

let positions = vec![
    [0.0, 0.0, 0.0]
    [hex_metrics.outer_radius, 0.0, 0.0],
    [0.5 * hex_metrics.outer_radius, 0.0, hex_metrics.inner_radius],
    [-0.5 * hex_metrics.outer_radius, 0.0, hex_metrics.inner_radius],
    [-hex_metrics.outer_radius, 0.0, 0.0],
    [-0.5 * hex_metrics.outer_radius, 0.0, -hex_metrics.inner_radius],
    [0.5 * hex_metrics.outer_radius, 0.0, -hex_metrics.inner_radius],
];

File: create_hex_mesh.rs

By translating and adding these vectors, we can place each cell and navigate to its neighbors.

Rendering with Bevy Custom Mesh

In Bevy, to draw a hex cell as a 3D mesh you need:

Vertex Positions
UV Coordinates
Normals
Index Buffer (which vertices form each triangle)
Material (color or texture)

We can represent our hex as a triangle fan: one center vertex plus the six outer vertices, forming six triangles. Here is a full example of custom bevy mesh:


#[rustfmt::skip]
pub fn create_hex_mesh(hex_metrics: &HexMetrics) -> Mesh {
    let mut mesh = Mesh::new(
        PrimitiveTopology::TriangleList,
        RenderAssetUsages::MAIN_WORLD | RenderAssetUsages::RENDER_WORLD,
    );

    let positions = vec![
        [0.0, 0.0, 0.0],
        [hex_metrics.outer_radius, 0.0, 0.0],
        [0.5 * hex_metrics.outer_radius, 0.0, hex_metrics.inner_radius],
        [-0.5 * hex_metrics.outer_radius, 0.0, hex_metrics.inner_radius],
        [-hex_metrics.outer_radius, 0.0, 0.0],
        [-0.5 * hex_metrics.outer_radius, 0.0, -hex_metrics.inner_radius],
        [0.5 * hex_metrics.outer_radius, 0.0, -hex_metrics.inner_radius],
    ];
    mesh.insert_attribute(Mesh::ATTRIBUTE_POSITION, positions.clone());

    info!("positions: {:?}", positions);

    // UV mapping: map positions from the xz-plane into 0-1 space.
    let uvs: Vec<[f32; 2]> = positions
        .iter()
        .map(|[x, _y, z]| {
            [
                (x / (2.0 * hex_metrics.outer_radius)) + 0.5,
                (z / (2.0 * hex_metrics.outer_radius)) + 0.5,
            ]
        })
        .collect();
    mesh.insert_attribute(Mesh::ATTRIBUTE_UV_0, uvs);


    // All normals point upward (y-axis up).
    let normals = vec![[0.0, 1.0, 0.0]; positions.len()];
    mesh.insert_attribute(Mesh::ATTRIBUTE_NORMAL, normals);

    // Define triangles by connecting center (0) with pairs of adjacent vertices
    let indices = vec![
        0, 2, 1,  // First triangle
        0, 3, 2,  // Second triangle
        0, 4, 3,  // Third triangle
        0, 5, 4,  // Fourth triangle
        0, 6, 5,  // Fifth triangle
        0, 1, 6,  // Sixth triangle
    ];
    mesh.insert_indices(Indices::U32(indices));

    mesh
}

File: create_hex_mesh.rs

Building a simple app

Let’s quickly build a simple application to render this mesh. For that, we’ll need to set up a basic camera, mesh, and material.

One useful configuration to keep in mind is the WindowPlugin, which is required to embed a WASM-compiled Bevy application into a target HTML element.

fn main() {
    App::new()
        .init_resource::<HexMetrics>()
        .add_plugins(
            DefaultPlugins
                .set(WindowPlugin {
                    primary_window: Some(Window {
                        canvas: Some("#bevy-canvas".into()),
                        resolution: WindowResolution::new(300.0, 300.0),
                        fit_canvas_to_parent: true,
                        prevent_default_event_handling: false,
                        ..default()
                    }),
                    ..default()
                }),
        )
        .add_systems(Startup, setup)
        .run();
}


fn setup(
    mut commands: Commands,
    mut materials: ResMut<Assets<StandardMaterial>>,
    mut meshes: ResMut<Assets<Mesh>>,
    hex_metrics: Res<HexMetrics>,
    asset_server: Res<AssetServer>,
) {
    let hex_mesh_handle = meshes.add(create_hex_mesh(&hex_metrics));
    let hex_material = materials.add(StandardMaterial {
        base_color: Color::srgb(0.8, 0.0, 0.0),
        cull_mode: None,
        double_sided: true,
        ..default()
    });
    let entity = commands
        .spawn((
            Mesh3d(hex_mesh_handle),
            MeshMaterial3d(hex_material.clone()),
            Transform::from_translation(Vec3::new(0.0, 0.0, 0.0)),
            GlobalTransform::default(),
            HexCell,
            HexCoord::new(0, 0),
        ))
        .id();

    commands.spawn((
        Camera3d::default(),
        Transform::from_xyz(0.0, 150.0, 0.0).looking_at(Vec3::ZERO, -Vec3::Z),
        Camera {
            clear_color: Color::from(SLATE_950).into(),
            hdr: true,
            ..default()
        },
        Msaa::Off,
    ));

    commands.spawn((
        DirectionalLight {
            illuminance: light_consts::lux::OVERCAST_DAY,
            shadows_enabled: true,
            ..default()
        },
        Transform {
            translation: Vec3::new(0.0, 2.0, 0.0),
            rotation: Quat::from_rotation_x(-PI / 4.),
            ..default()
        },
    ));

    commands.insert_resource(AmbientLight {
        color: Color::WHITE,
        brightness: 100.0,
        ..default()
    });
}

File: main.rs

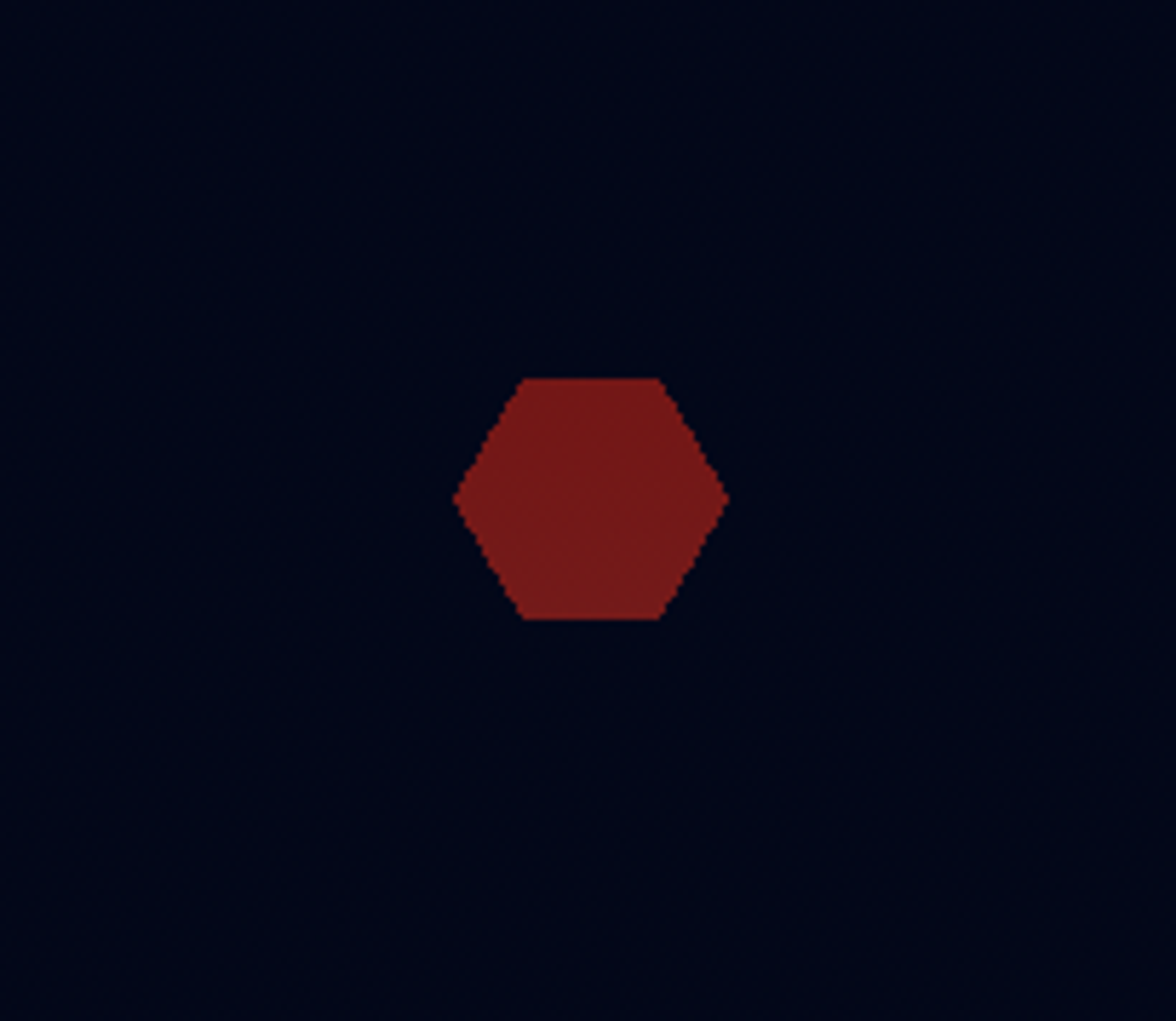

The result is the same as the cover image above. I originally planned to include the WASM binary in every post, but since the file size is large and there’s no meaningful interaction, it doesn’t seem very engaging, so I won’t include it each time. After a few more posts, I plan to add interactive demo pages in the project where you can explore the built WASM files directly.

simple_hexagon_from_bevy

Next Steps

We’ve laid the groundwork: hexagon geometry, coordinate calculations, and rendering a single cell in Bevy. Next up, we’ll explore Map‐wide coordinate systems (axial, cube coordinates)

With our first step complete, I’m excited for the journey ahead.
